*Using Mount Adapter EF-EOS R: Canon EF or EF-S lenses (excluding EF-M lenses)Lens focal lengthSame as the focal length indicated on the lens
*Using RF-S/EF-S lenses: approx. 1.6 times the indicated focal lengthImage sensor typeFull Frame back-illuminated stacked CMOS sensorImage sensor sizeApprox. 36.0 x 24.0mmEffective pixelsMax. approx. 24.2 megapixels

*Rounded to the nearest 100,000.
*Using RF and EF lenses. The effective pixel count may be lower with certain lenses and image processing.

Digital image processorDIGIC Accelerator & DIGIC XRecording mediaEquipped with double card slots
2 x CFexpress 2.0 Type B memory card (*VPG400 compatible)Recording image type

[Still photos]<br> JPEG (8-bit), HEIF (10-bit), RAW (14-bit) and C-RAW (14-bit)
[Movies]
RAW (12-bit; .CRM)
XF-HEVC S YCC422 10bit (.MP4)
XF-HEVC S YCC420 10bit (.MP4)
XF-AVC S YCC422 10bit (.MP4)
XF-AVC S YCC420 8bit (.MP4)
News Metadata* (.XML)

When MP4 movie is recorded with [Add CP File: Enable], “.CPF” file will be created.

Still photos pixel count

JPEG L (Large): 24.0 megapixels (6000 x 4000), Approx. 8.3 MB
JPEG M (Medium): Approx. 10.6 megapixels (3984 x 2656), Approx. 4.4 MB
JPEG S1 (Small 1): Approx. 5.9 megapixels (2976 x 1984), Approx. 3.0 MB
JPEG S2 (Small 2): Approx. 3.8 megapixels (2400 x 1600), Approx. 1.8 MB
HEIF L (Large): 24.0 megapixels (6000 x 4000), Approx. 8.4 MB
HEIF M (Medium): Approx. 10.6 megapixels (3984 x 2656), Approx. 4.9 MB
HEIF S1 (Small 1): Approx. 5.9 megapixels (2976 x 1984)), Approx. 3.5 MB
HEIF S2 (Small 2): Approx. 3.8 megapixels (2400 x 1600), Approx. 2.1 MB
RAW: 24.0 megapixels (6000 x 4000), Approx. 27.5MB
C-RAW: 24.0 megapixels (6000 x 4000), Approx. 12.4 MB

*Values for recorded pixels are rounded off to the nearest 100,000th.
*RAW images are generated at 3: 2, with information added about the specified aspect ratio, and JPEG/HEIF images are generated at the specified aspect ratio.
*File size varies depending on shooting conditions (including 1.6x crop/aspect ratio, subject, ISO speed, Picture Style, and Custom Function).

Aspect Ratio3:2, 1.6x (crop)*, 1:1, 4:3, 16:9 are available
*Angle of view of approx. 1.6 times the focal length.Recording functions

Possible to set still photos and movie recorded separately (Movies are recorded to card 1 and still photos to card 2).
[Still photos] Standard, auto switch card, record separately, record to multiple
[Movie] Standard, auto switch card, main/ proxy, record to multiple

RAW+JPEG simultaneous recordingYes. Simultaneous recording of any combination of RAW/C-RAW and JPEG/HEIF image-recording quality is supported.File nameStill Photo: Preset code, User setting 1, User setting 2
Movie: Camera Index / Reel Number / Clip Number / User Defined customizableColor spaceStill Photo: sRGB, Adobe RGB
Movie: BT.709, BT.2020, Cinema GamutPicture StyleAuto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, User Defined 1–3ClarityCan be set from -4 to +4White balance settingAuto (Ambience priority / White priority), Daylight, Shade, Cloudy, Tungsten light, White fluorescent light, Flash, Custom, Color temperature setting (approx. 2500–10000K)
*Compatible with Speedlites color temperature transmission function.Noise reductionLong exposure noise reduction, High ISO speed noise reductionAutomatic image brightness correctionAuto Lighting OptimizerHighlight tone priorityYesLens aberration correctionPeripheral Illumination Correction, Distortion Correction, Focus Breathing Correction, Digital Lens Optimizer, Chromatic Aberration Correction and Diffraction CorrectionFocusing methodDual Pixel CMOS AF
Cross-type AF supported*

* Only when shooting still photos with the electronic shutter, or when using the electronic 1st-curtain/ mechanical shutter in H/ L drive mode; not supported when using pre-AF or focus guide.. Not available when image flickers under fluorescent lighting, LED lighting or other flickering light source and when operating the SA control ring of RF100mm F2.8 L MACRO IS USM.

Focusing operation

[Still photo shooting]
AF operation: One-Shot AF, Servo AF
Manual focus: Supported

[Movie recording]
AF operation: One-Shot AF, Movie Servo AF
Manual focus: Supported

Number of AF zones available for automatic selection

Max. AF coverage: Approx. 100% (Horizontal), Approx. 100% (Vertical)
Number of AF zone:
[Still photos] Max. 1053 zones (39 x 27)
[Movie] Maximum 975 zones (39 x 25)
*May vary depending on settings

Selectable positions for AF point

Max. AF coverage: Horizontal: Approx. 90%, Vertical: Approx. 100%
Number of positions:
[Still photos] Max. 4368 positions (78 x 56)
[Movie] Max. 3354 positions (78 x 43)
*When set to [1-point AF] and selected using the Multi-controller.

Focusing brightness range (in still photo shooting)

EV –7.5 to 21
(With an f/1.2 lens*, center AF point, vertical-line detection, One-Shot AF, at 23°C, ISO 100)
*Except RF lenses with a Defocus Smoothing (DS) coating

Focusing brightness range (in movie recording)

EV -5.5 to 21 (4K 30p); EV -5.0 to 21 (FHD 30p)
(With an f/1.2 lens, center AF point, One-Shot AF, at 23°C, ISO 100, 29.97/ 25.00 fps)
*Except RF lenses with a Defocus Smoothing (DS) coating.

AF methodSpot AF*, 1-Point AF*, Expand AF Area: Up/ Down/ Left/ Right*, Expand AF Area: Around*, Flexible Zone AF 1-3, Whole area AF
*[Whole area tracking Servo AF] On / Off can be selected.Eye detection AFSupported and able to detect the eye of human or animal (dogs, cats, birds, horses) subjects; Left Eye/ Right Priority
*Subject eyes may not be detected correctly, depending on the subject and shooting conditionsSubject recognitionPeople, Animal (dogs, cats, birds and horses), Vehicles (sports cars and motorcycles, trains, airplanes)Touch and drag AFSupportedMetering sensor[Still photo shooting]
6144-zone (96x64) metering using image sensor output* signals
Flash Metering: 384-zone (24x16) metering using image sensor output signals*

[Movie recording]
DCI: 4800-zone (96x50) metering using image sensor output* signals
UHD: 5184-zone (96x54) metering using image sensor output* signals

*Same applies when [1.6x (crop)] or [Movie cropping: Enable] is set.

Metering mode

[Still photo shooting] Evaluative metering, Partial metering (approx. 10% in the center of the screen), Spot metering (approx. 5% in the center of the screen), Center-weighted average
[Movie recording] Evaluative metering

Metering Brightness Range (At 23°C, ISO 100)

[Still photo shooting] EV -3 to 20
[Movie recording] EV -1 to 20

Shooting mode

[Still photo shooting]
Flexible-priority AE, Program AE, Shutter-priority AE, Aperture-priority AE, Manual exposure, Bulb exposure, Custom shooting modes (C1/C2/C3)

[Movie recording]
Program AE, Shutter-priority AE, Aperture-priority AE, Manual exposure, Custom shooting modes (C1/C2/C3)

ISO speed (Recommended Exposure Index)

[Manually set ISO speed in still photo shooting]
Normal ISO Speed(in 1/3-stop or 1-stop increments): ISO 100-102400
Expanded ISO speed (equivalent): L (ISO 50), H1 (ISO 204800), H2 (ISO 409600)

[Manually set ISO speed in movie recording]
Normal ISO Speed (in 1/3-stop or 1-stop increments):
Custom Picture (Off): ISO 100-32000
Custom Picture (Canon 709 / PQ /HLG): ISO 400-32000
Custom Picture (Canon Log 2 / Canon Log 3): ISO 800-32000
Custom Picture (BT.709): ISO 160-32000

Expanded ISO speed (equivalent):
Custom Picture (Off): H (ISO 40000/51200/64000/80000/102400); H1 (204800)
Custom Picture (Canon 709 / PQ /HLG): L (ISO 100/125/160/200/250/320); H (ISO40000/51200/64000/80000/102400); H1 (204800)
Custom Picture (Canon Log 2 / Canon Log 3): L (ISO 100/125/160/200/250/320/400/500/640); H (ISO 40000/51200/64000/80000/102400); H1 (204800)
Custom Picture (BT.709): L (ISO 100/125); H (ISO 40000/51200/64000/80000/102400); H1 (204800)

Other still photo shooting functionsPre-Continuous Shooting, HDR PQ shooting, Anti-flicker shooting, High-Frequency Anti-Flicker Shooting, Multiple exposure, Focus bracketing, Depth Composition, Interval timer, Bulb timerShutter type

[Still photo shooting]
Electronically-controlled focal-plane shutter /Rolling shutter, using the image sensor
[Movie recording]
Rolling shutter, using the image sensor

Shutter modeMechanical shutter, Electronic 1st curtain, Electronic shutterShutter speed

[Still photo shooting]
When [Mechanical] or [Elec. 1st curtain] is set:
1/8000 sec. to 30 sec., Bulb
When [Electronic] is set:
1/64000* sec. to 30 sec., Bulb
*Shutter speed of 1/10000 sec. or faster are only available in Tv or M mode(up to 1/8000 sec. in Fv, P, or Av mode). When [ISO speed/Shutter speed] or [Shutter speed] is set with Focus bracketing, Flash photography, or [Same expo. for new aperture], The maximum shutter speed limit will be 1/8000 sec with Focus bracketing, Flash photography or when [ISO speed/Shutter speed] or [Shutter speed] is set with Focus bracketing’

[Movie recording]
1/8000–1/25*¹*² sec.
Movies in Tv or M mode: 1/8000–1/8*² sec.
*1: In normal movie recording, the minimum speed varies depending on the recording mode and frame rate.
*2: The minimum speed is 1/250 sec. (NTSC) / 1/200 sec. (PAL) when the frame rate is set to 239.76 or 200.00 fps, and 1/125 sec. (NTSC) / 1/100 sec. (PAL) when the frame rate is set to 119.88 or 100.00 fps.

X-sync speedMechanical shutter: 1/200 sec.
Electronic 1st-curtain: 1/250 sec.
Electronic shutter: 1/320 sec.Shutter status at shutdownCan be set as Closed or OpenCompatible external SpeedliteEL and EX series Speedlites for EOS CamerasExternal flash settingsE-TTL II autoflashPC terminalYesIn-body image stabilizationYes
8.5-stop shake compensation at the center*
7.5-stop shake compensation at the peripheral *

*Based on the CIPA 2024 standard. Yaw/ pitch/ roll image stabilization performance with RF24-105mm F2.8L IS USM (focal length: 105mm).

Drive ModeSingle shooting, High-speed continuous shooting+, High-speed continuous shooting, Low-speed continuous shooting, Self-timer: 10 sec., Self-timer: 2 sec., Self-timer: ContinuousContinuous Shooting Speed

[Electronic Shutter]
High-speed continuous shooting+: Max. approx. 40FPS*^
High-speed continuous shooting: Max. approx. 35FPS*^
Low-speed continuous shooting: Max. approx. 5.0FPS

[Electronic 1^st Curtain]
High-speed continuous shooting+: Max. approx. 12FPS*^
High-speed continuous shooting: Max. approx. 8.0FPS*^
Low-speed continuous shooting: Max. approx. 3.0FPS

[Mechanical Shutter]
High-speed continuous shooting+: Max. approx. 12FPS*^
High-speed continuous shooting: Max. approx. 6.2FPS*^
Low-speed continuous shooting: Max. approx. 3.0FPS

*Continuous shooting speed may be slower depending on subject/shooting conditions or the camera setup or the lens used, etc.
^If flicker is detected, continuous shooting will slow down even when anti-flicker shooting is turned off.

Maximum burst for continuous shooting

JPEG Large/Fine: approx. 1,000 or more*/500**
HEIF Large/Fine: approx. 1,000 or more*/500**
RAW: approx. 1,000 or more*/230**
C-RAW: approx. 1,000 or more*/410**
RAW + JPEG Large/Fine: 1,000 or more*/220**
RAW + HEIF Large/Fine: approx. 260*/190**

*Based on mechanical shutter or electronic 1st-curtainshutter, shot at approx. 12 fps.
**Based on electronic shutter, shot at approx. 40 fps.
Maximum burst for CFexpress cards apply to 325 GB CFexpress cards conforming to Canon testing standards.
Maximum burst as measured under conditions conforming to Canon testing standards (One-shot AF, High-speed continuous shooting+, JPEG/HEIF image quality: 8, ISO 100, Picture Style: Standard, and room temperature: 23°C / 73°F)
Maximum burst vary depending on shooting conditions (including cropping/aspect ratio, JPEG/HEIF image quality, subject, memory card brand, ISO speed, Picture Style, and Custom Function).

Movie recording size

RAW: 6000x3164

4K DCI: 4096x2160
4K UHD: 3840x2160

2K DCI: 2048x1080
Full HD: 1920x1080

Movie compression

HDMI RAW: ProRes RAW*
RAW: Standard RAW / Light RAW
XF-HEVC S YCC422 10bit: MPEG-H HEVC/H.265 (Standard Long GOP)
XF-HEVC S YCC420 10bit: MPEG-H HEVC/H.265 (Standard Long GOP)
XF-AVC S YCC422 10bit: MPEG-4 AVC/H.264 (High Quality/Standard/Light Intra-frame; Standard Long GOP)^
XF-AVC S YCC420 8bit: MPEG-4 AVC/H.264 (Standard Long GOP)

*with compatible ATOMOS recorder
^Available compression options depend on movie recording size and frame rate

Movie recording format / frame rate

RAW: 59.94 / 50.00 / 29.97 / 25.00 / 24.00 / 23.98fps
4K DCI / UHD: 119.88^*1*2/ 100.00^*1*2 / 59.94 / 50.00 / 29.97 / 25.00 / 24.00 / 23.98fps
4K DCI / UHD Fine: 59.94 / 50.00 / 29.97 / 25.00 / 24.00 / 23.98fps
2K DCI / FHD: 239.76^*2 / 200.00^*2 / 119.88^*2/ 100.00^*2/ 59.94 / 50.00 / 29.97 / 25.00 / 24.00 / 23.98fps
2K DCI / FHD Fine: 59.94 / 50.00 / 29.97 / 25.00 / 24.00 / 23.98fps

^*1：High Quality Intra cannot be selected.
^*2：With [High Frame Rate: Disable] setting, movie is recorded with audio and the movie is played back at actual speed. With [High Frame Rate: Enable] setting, no audio is recorded and the movie is played in slow motion at 29.97 fps (NTSC) /25.00 fps (PAL) when played back. Only exFAT-formatted cards can be used for recording (recording to FAT32-formatted cards is not possible).

Movie croppingSupportedSound recording format

LPCM / 24-bit / 4CH
ACC / 16-bit / 2CH

Movie orientation informationAdding movie orientation information is supportedTime codeSupportedDrop frameCompatible with 239.76p/119.88p/59.94p/29.97pMovie digital zoomNot supportedMovie digital ISSupportedSound recordingBuilt-in Stereo microphone, connect to Multi-function Shoe, external stereo microphone terminal providedOther movie recording functionsDual Shooting (still & movie), Pre-Recording, False Color, Zebra display, DAF Focus guide, MF peaking, Tally Lamp, Recording Emphasis, Movie self-timerViewfinder typeOLED color electronic viewfinderViewfinder screen size0.64 inchViewfinder dot countApprox. 9,440,000 dotsViewfinder magnification

Approx. 0.90x (with 50mm lens at infinity, -1m^-1)

Viewfinder coverageApprox. 100% (at L image quality, an aspect ratio of 3:2, and approx. 25mm eyepoint)Viewfinder eyepoint

Approx. 25mm (at -1 m^-1 from eyepiece lens end)

Viewfinder dioptric adjustment

Approx. –4.0 to +2.0 m^–1 (dpt)

LCD monitor typeSide-opening vari-angle Clear View II LCD touch monitorLCD monitor size3.2 inch (screen aspect ratio of 3:2)LCD monitor resolutionApprox. 2,100,000 dotsUser interface magnificationSupportedViewfinder/monitor color toneWarm tone, Standard, Cool tone 1 , Cool tone 2.
Fine-tuning viewfinder color tone is supportedIn-camera image processing functionRAW processing, In-Camera Upscaling, Neural network Noise Reduction, image resize, image cropping, HEIF to JPEG conversionFrame grab from movies

Supported.
Individual frames in 4K movies recorded with the camera can be saved as JPEG or HEIF still photos*.
*Still photos are saved as JPEGs from normal movies, and as HEIF images from HDR PQ movies. Frame grabbing from RAW movies is not available. The camera cannot frame grab still photos from movies recorded when [Custom Picture function: On] is set. In-camera resizing or cropping and in-camera upscaling are not available for frame-grabbed still photos.

Custom functionControl Customization Menu and Custom Functions MenuCustom shooting modeCurrent camera settings can be registered to C1/C2/C3 shooting modes
*Still images and movies settings can be registered separatelyVoice memo recordingSupported. Audio can be recorded with the built-in microphone during still photo playback. Recorded in WAV format using the same file number as the image.Digital terminal

Terminal Type: USB Type-C
Transmission: SuperSpeed Plus USB (USB 3.2 Gen 2) equivalent
Applications:

For UVC / UAC connection
For computer / smartphone communication
For in-camera charging and powering the camera with USB Power Adapter PD-E2

HDMI terminalHDMI terminal (Type A) / CEC not supportedEthernet terminal RJ-45 terminal (2.5GBASE-T)External microphone input terminalCompatible with Φ3.5 mm stereo mini plugHeadphone terminalCompatible with Φ3.5 mm stereo mini plug, volume adjustableRemote control terminalN3 type terminal.
Compatible with Remote Switch RS-80N3 (optional)Wireless remote controlCompatible with Wireless Controller BR-E1 (optional)Wi-Fi compliance standardsIEEE 802.11b / g / n / a / ac / axWi-Fi transmission methodDS-SS modulation (IEEE 802.11b)
OFDM modulation (IEEE 802.11g / n / a / ac / ax)Wi-Fi connection methodCamera access point, infrastructureBluetooth standards complianceBluetooth Specification Version 5.3 compliant (Bluetooth Low Energy technology)Bluetooth transmission methodGFSK modulationCommunication modeConnect to smartphone, Connect to EOS Utility, Transfer images to FTP server, Upload to image.canon, Connect to wireless remote, Sync time between cameras, Live StreamingGPS functionBuilt-inBattery packCompatible battery packs: LP-E19; Quantity use: 1USB battery charging and camera powerUsing USB Power Adapter PD-E2 (optional)AC power sourceUsing AC Adapter AC-E19 (optional) and DC Coupler DR-E19 (optional)Dimensions (W x H x D)

157.6 x 149.5 x 87.3mm
*based on CIPA guideline

Weight (Approx.)Approx. 1,115g (CIPA guideline, including battery pack and CFexpress card)
Approx. 920g (body only)Operating temperature0 to 45°COperating humidity85% or less

Language

Language

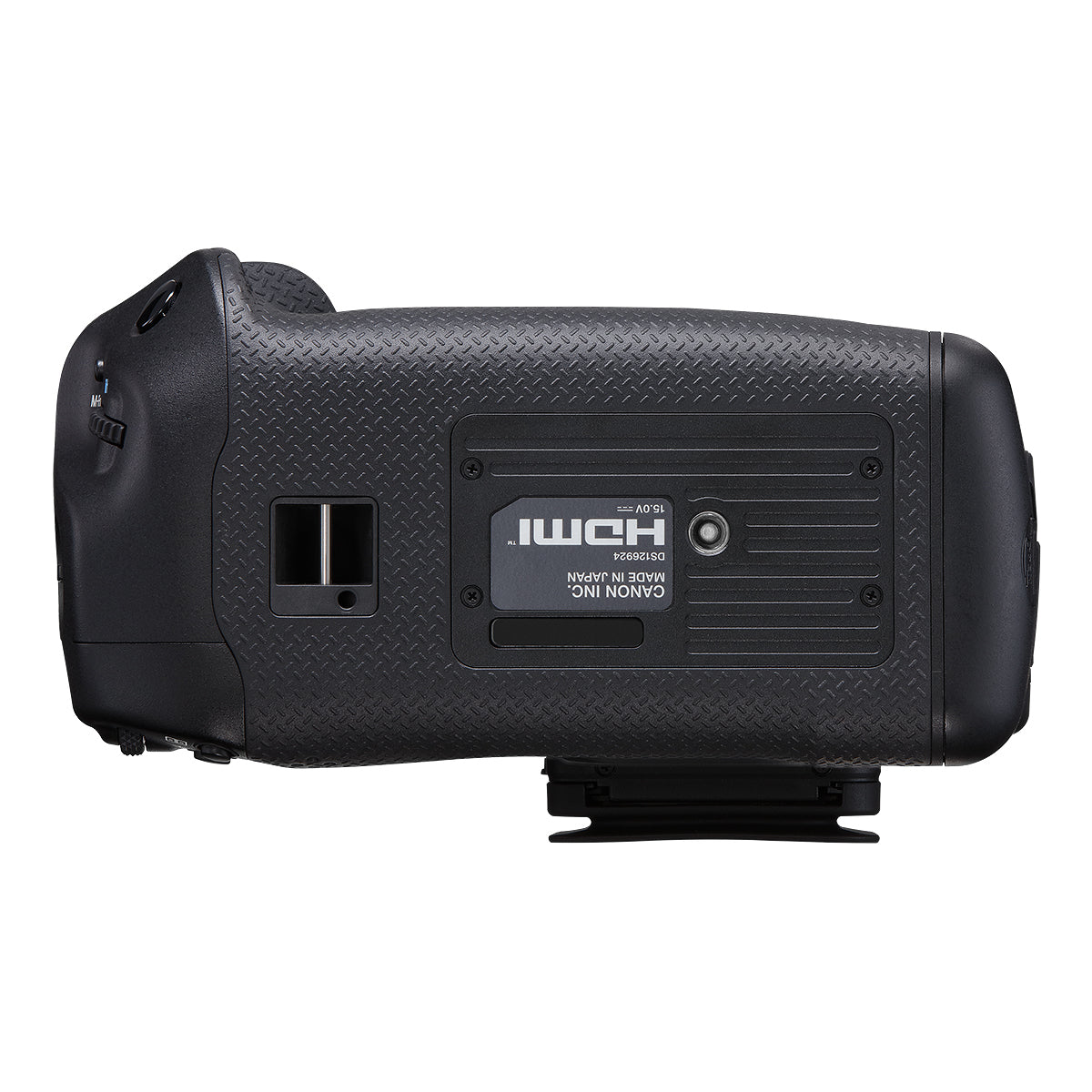

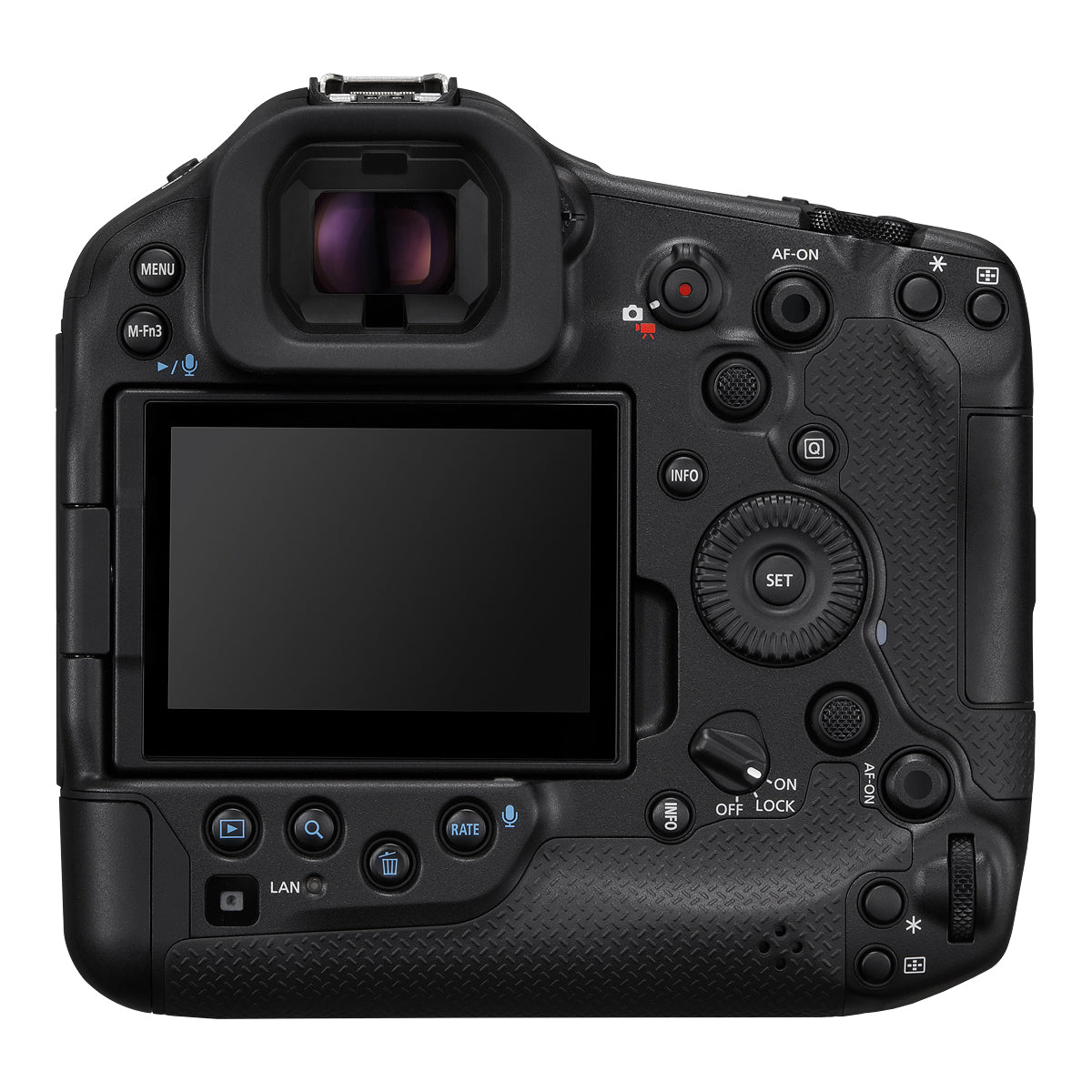

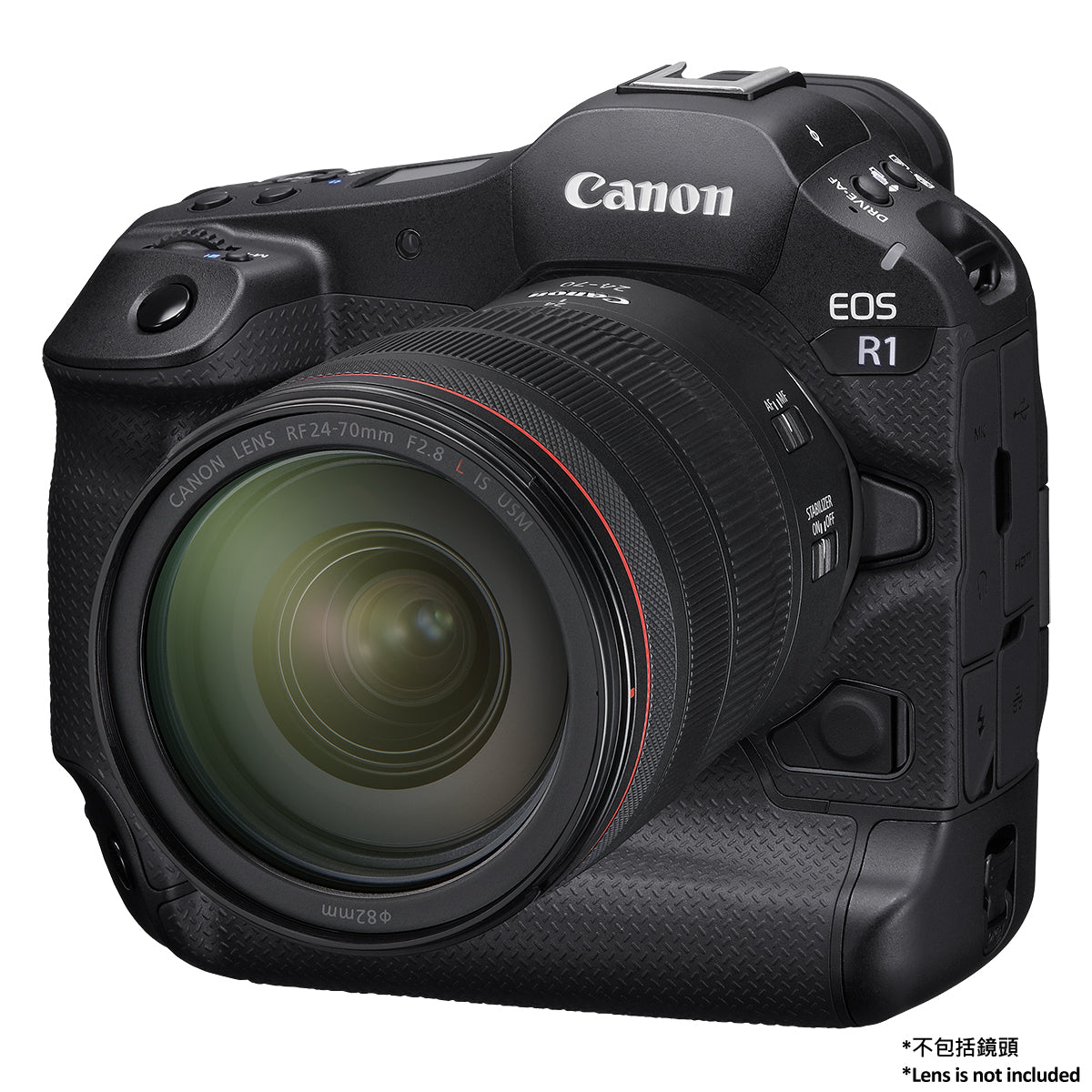

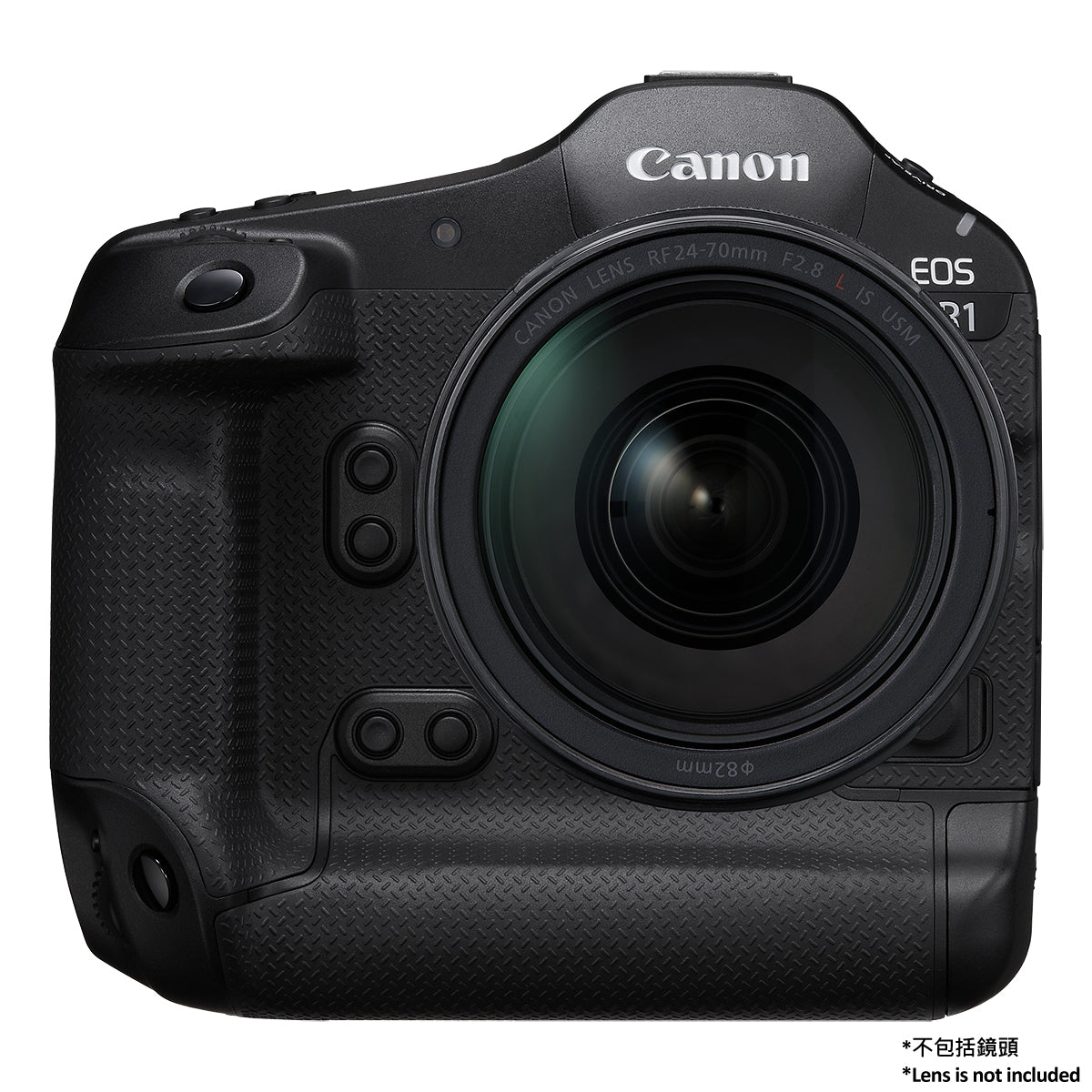

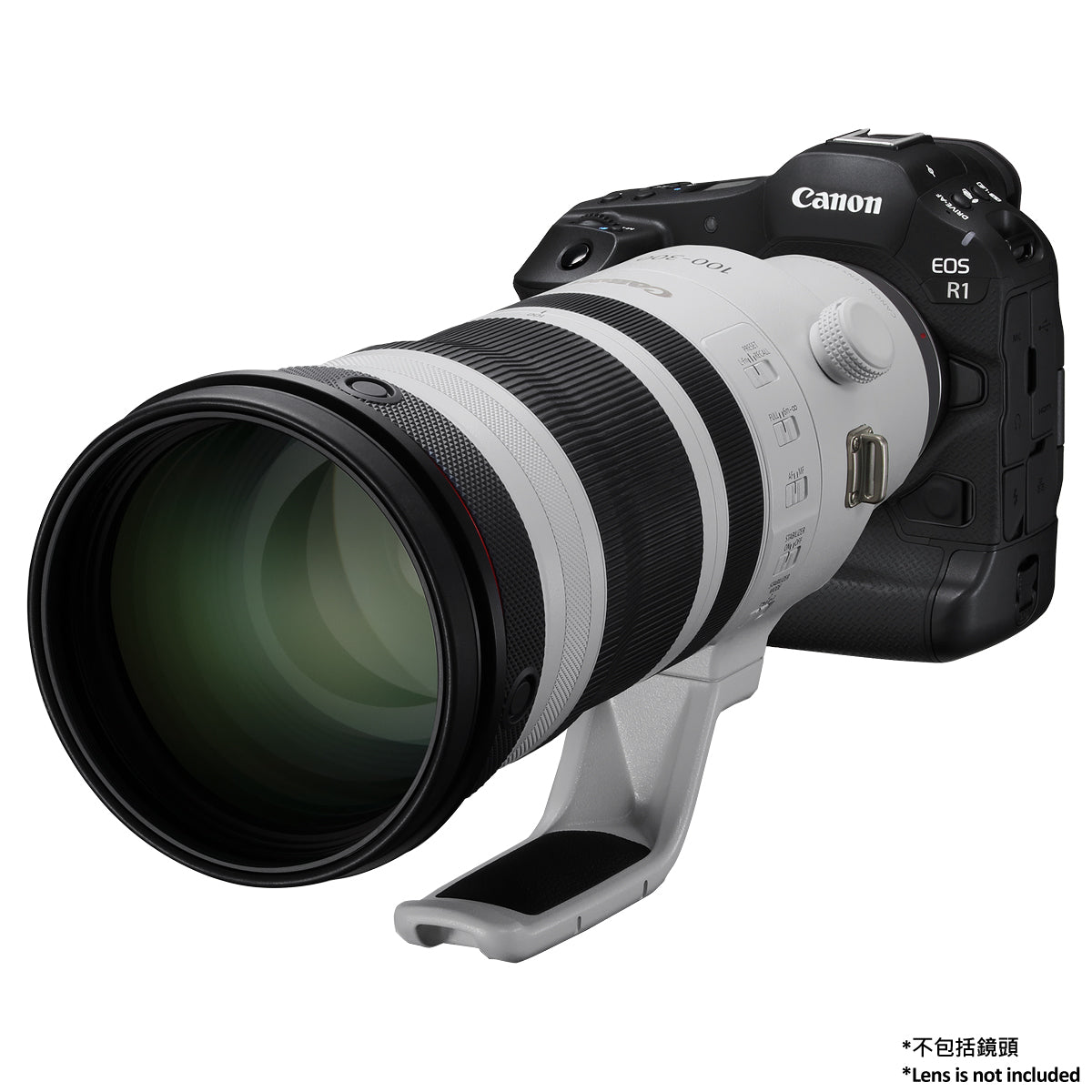

EOS R1
