Type
Type	E-TTL II/E-TTL/TTL autoflash, Ring-type flash unit for close-ups
Compatible cameras	Type-A EOS cameras (E-TTL II/E-TTL autoflash) Type-B EOS cameras (TTL autoflash) ^*Please refer to Compatibility information for details
Compatible lenses	RF35mm F1.8 MACRO IS STM RF100mm F2.8 L MACRO IS USM(requires Macrolite Adapter 67) EF 50mm f/2.5 Compact Macro EF 100mm f/2.8L Macro IS USM (requires Macrolite Adapter 67) EF 100mm f/2.8 Macro USM EF 100mm f/2.8 Macro EF 180mm f/3.5L Macro USM (requires Macrolite Adapter 72C) MP-E 65mm f/2.8 1-5x Macro Photo EF-S 35mm f/2.8 Macro IS STM EF-S 60mm f/2.8 Macro USM
Flash Unit
Guide Number (ISO 100, meter)	Both sides firing: approx.: 14 Single-side firing: approx. 10.5
Flash coverage	Approx. 80° vertically, 80° horizontally
Flash Time	Normal flash: Approx. 1.8 ms or shorter / Quick flash: Approx. 2.3 ms or shorter
Color temperature information transmission	Flash color temperature information transmitted to camera when flash is fired
Filter	A 67 mm filter can be attached on the front face of the flash unit
Focusing Lamp	Coverage Upper lamp: Approx. 60° vertically and 60° horizontally Lower lamp: Approx. 45° vertically and 45° horizontally Light intensity: Adjustable
Exposure Control
Exposure control system	E-TTL II/E-TTL/TT autoflash, manual flash
Effective flash range	Normal flash: Approx. 20mm - 5m Quick flash: Approx. 20mm - 2.7m (at Guide No. 7.5, in meters) High-speed sync: Approx. 20mm - 2.7m (at 1/250 sec.) ^* Both sides firing, with f/2.8 lens, ISO 100 ^* Distance from the flash unit
Flash mode	Both sides firing, single-side firing
Flash ratio control	8:1 - 1:1 - 1:8, 1/2-stop increments
Flash exposure compensation	±3 stops in 1/3- or 1/2-stop increments
FEB	±3 stops in 1/3- or 1/2-stop increments (when used with flash exposure compensation)
FE lock	Enabled with the camera's Multi-function button or FE lock/ AE lock buttons
High-speed sync	Supported
Manual flash	Normal flash: 1/1 - 1/128 power (1/3-stop increments) High-speed sync: 1/1 - 1/64 power (1/3-stop increments)
Flash exposure compensation	Flash exposure confirmation lamp lights
Modeling flash	Fired with camera's depth-of-field preview button or MR-14EX II's test flash button
Flash Recycling
Firing interval (recycling time)	Normal flash: Approx. 0.1 - 5.5 sec. Quick flash: Approx. 0.1 - 3.3 sec. ^* When using AA/LR6 alkaline batteries
Flash-ready lamp display	Lights in red: normal flash available Lights in green: Quick flash available
Optical Transmission Wireless Sender Function
Connection Method	Optical Pulse
Channel	Channel 1-4
Receiver unit control	Up to 3 groups (A, B, C)
Transmission range	Indoors: Approx. 0.2 - 5m (at the front) Outdoors: Approx. 0.2 - 3m (at the front) Approx. 60° vertically and 80° horizontally
Power Source
MR-14EX II power source	Four AA/LR6 alkaline batteries ^* AA/LR6 Ni-MH and AA/LR6 lithium batteries also usable
Battery Life (number of flashes)	Approx. 100 - 700 flashes (When using AA/LR6 alkaline batteries)
Power Saving	Power off after approx. 90 sec. of idle operation
External power source	Compact Battery Pack CP-E4 can be used
Others
Custom functions	12
Personal functions	3
Dimensions (W x H x D)	Flash Unit: 129.6 × 112.1 × 25.3 mm Control unit: 69.6 × 118.8 × 71.4 mm
Weight	Approx. 455g (MR-14EX II only, excluding batteries)

All specifications above are based on Canon's testing standards.
Product specifications and external appearance are subject to change without notice.

Language

Language

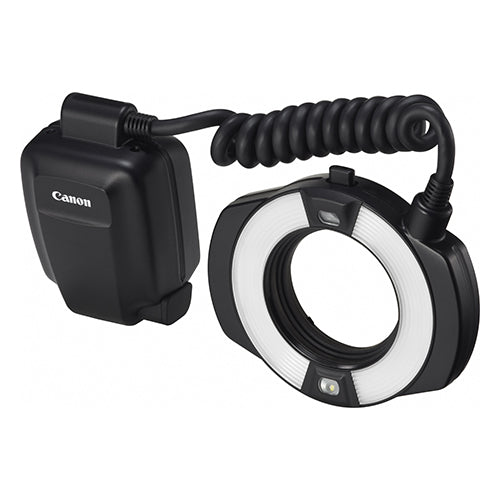

Macro Ring Lite MR-14EX II
